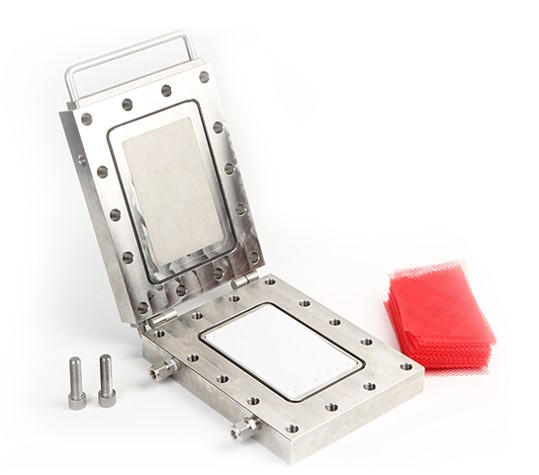

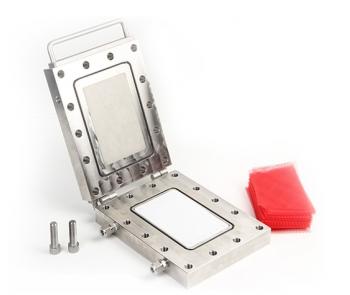

MF/UF/NF/RO용 Flat Sheet Test Cell

Flat Sheet Membrane(평막) 실험을 위한 최적의 테스트 셀
제품개요 제품 특/장점 제품 사양
•  Flat Sheet Membrane(평막) 실험을 위한 최적화된 테스트 셀입니다.
• Flat Sheet(평막)과 Hollow Fiber Membranes (중공사막)을 위한 다양한 사이즈와 PMMA, PVDF, 스테인레스 재질을 제공합니다.
•Membrane test cell A5
Membrane size: 184,5 x 121 mm active membrane area
Material: PMMA, POM, PVDF, SS316, Duplex
Pressure rating: 4 bar (polymeric version)
11 bar (polymeric version with reinforcement plates)
                             69 bar (stainless steel version)
Membrane type: flat sheet

•Membrane test cell A7
Membrane size: 79 x 50 mm active membrane area
Material: PMMA, POM, PVDF, SS316, Duplex
Pressure rating: 4 bar (polymeric version)
11 bar (polymeric version with reinforcement plates)
                             69 bar (stainless steel version)
Membrane type: flat sheet

•Round disc RO cell
Membrane size: 47 mm diameter
Material: SS316, Duplex
Pressure rating: 69 bar
Membrane type: flat sheet

•MF/UF cell small
Membrane size: 50 x 200 mm active membrane area
Material: PMMA, POM, PVDF
Pressure rating: 4 bar
11 bar (with reinforcement plates)
Membrane type: flat sheet

•MF/UF cell medium
Membrane size: 200 x 200 mm active membrane area
Material: PMMA, POM, PVDF
Pressure rating: 4 bar
11 bar (with reinforcement plates)
Membrane type: flat sheet

•MF/UF cell large
Membrane size: 986 x 26 mm active membrane area
Material: PMMA, POM, PVDF
Pressure rating: 30 bar
Membrane type: flat sheet
